TPS-S9710

发布者:TPS  更新日期:2018-08-29  点击次数:9507次
Model No.:TPS-S9710
Category:TPS Series Channel Letter Bending Machines


Content:

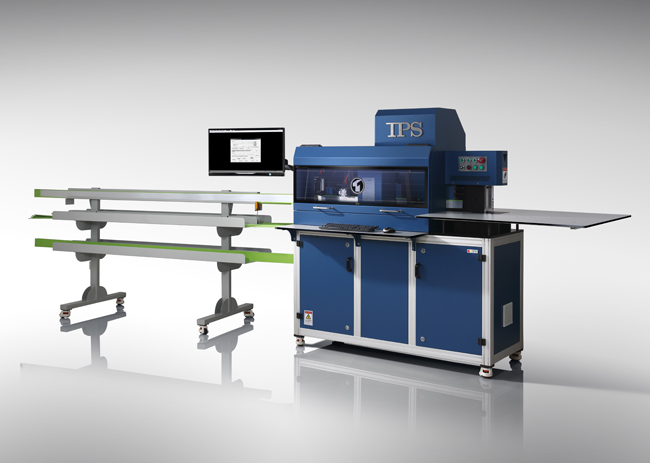

S9710 Super multi-functions automatic bending machine




    Global initiative more tool rod bending system and mold quick change system bend materials accurately, really realize high precision, efficient bending collecting aluminium profiles, stainless steel coil, stainless steel strip material, galvanizer material amd Chanalium materials by the one multi-functions super automatic bending machine.
    TPS super multi-functions automatic bending machine researched and developed based on TPS-S8700 and TPS-S6700, ensure that the equipment technical maturity, using front feeding straightening mechanism, clamping alternating conveying mechanism and slotting mechnism that feed screw nut drive linear guideway rotating and positioning hard alloy blade for cutting aluminium profiles, slotting mechanism for stainless steel material that screw nut drive linear guideway, built-in high-performance eight axis motion control card, basis on controling by independent research and developed special bending software program system to ensure the forming precision of the processing. The equipment is with structures of the precision and nice looking, with multilayer super-long guide rack, It is yoru first selection for making high grade LED sign, aluminium priofile sign, stainless steel sign,  punching sign and epoxy signs, etc.




Advantage of the equipment:

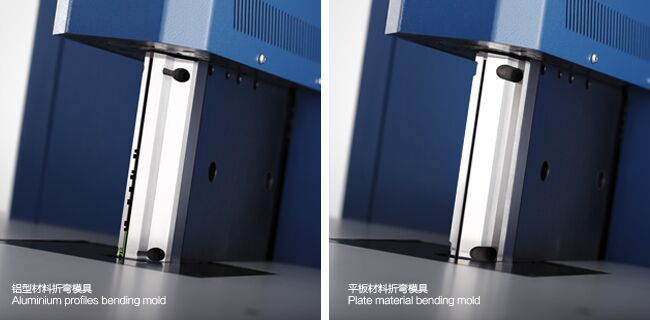

Bending tool quick-change system: In order to high quality bending for different materials, TPS company research and developed bending tool quick-change system, realize independent quick change between plate metal material and aluminium profiles, completely solve the industry problem of multi-type material can't be bended no demage accurately by the same equipment.

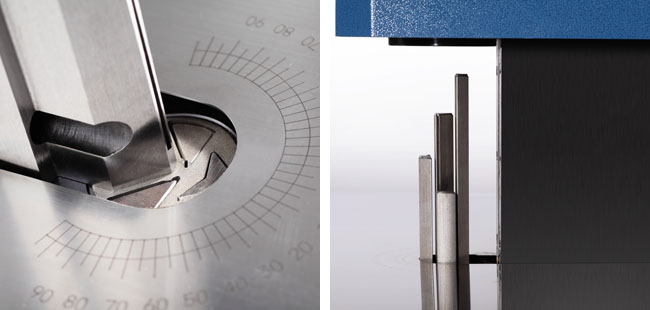

More tool rod bending system:On the basis of double pole adjustable bending system, add a group of bending rod professional for aluminium profiles, realize processing swith freely between strip shape materials and aluminium profiles, Minimize bending bar dry involved on the workpiece surface scratch in the process of bending. Thoroughly solved the problem of high quality bending with a single set of bending tool rod which can't work for both of aluminum profiles and plate material.


Fixed base for computer monitor can avoid uncomfortable phenomenon when people operate the machine because of large visual angle caused by high equipment and setting monitor on the top of the equipment hood. And to avoid impact the screen and keep out the screen when equipment cover is turned on. Users can adjust display stand cantilever angle freely according to their visual habit, to make screen position and angle in the best situation for operaters.

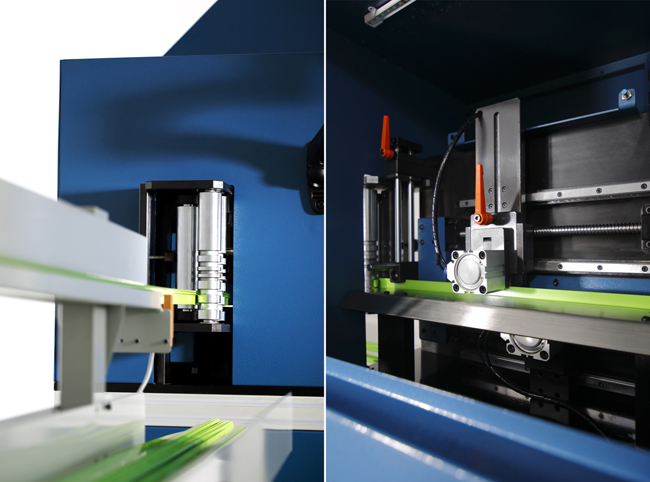

Front feeding straightening mechanism straightenning curved materials in advance for users in the process of material handling or use the reel material lead to nature bending deformation, to ensure that unstraight mateirals won'’t be stuck during processing.



The clamping alternating conveying mechanism is composed of two groups of cylinder clamping device, by linear guide, synchronous belt, tension adjusting mechanism, deceleration strengthening mechanism and large torque step motor cooperate closely to achieve high precision feeding, to eliminate the slippage of the roller type feed physics and indentation phenomenon caused by the stress.This machine components manuafactured with high recision, assemble complex, difficult to control. This mechnism is only fit for high-end equipment.

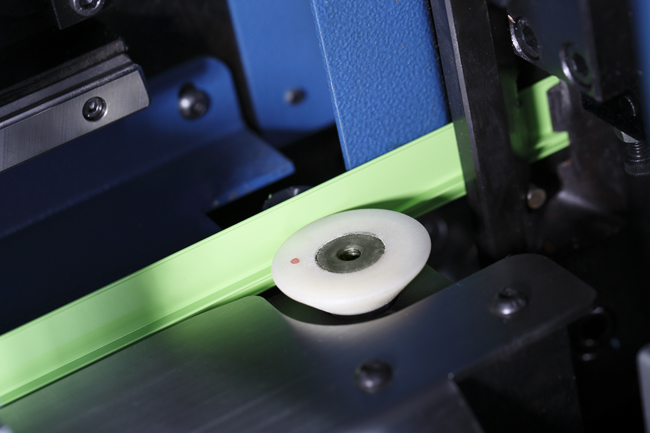

Closed-loop control:  Using alternating clamp feeding way with the unique full closed-loop detection, real-time compensate for length deviations such as the slippage of the detected materials, tensile during bending material, to effectively avoid problems of the inaccurate letter length , or not accurate matching with panel letter.



A、Servo motors control corner cut of aluminium profiles, avoid high decibel noise of angle grinder, improve working conditions.

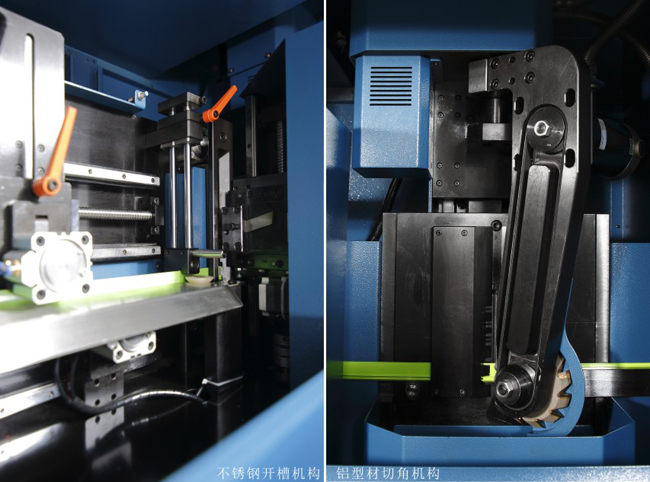

B、Planer slot mechanism is drove through the servo motor with characteristics of high speed, high precision and constant torque,  using step motor to control slot depth accurately, Using high quality ball screw, high precision linear guide to implement the mechanism of high rigidity and high durability, using imported special stainless steel cutter from Germany for slotting, slot track and slot deth can be set in the operating software; cutter with low-cost and durable, easy grinding, quick grind cutter and replace cutter in several munites.



The intelligent offset and personalized compensation: The software automatically generate corresponding to cooperate the contour offset mode, no need third party software for processing; manual compensation setting seprately according to users need, to avoid the tedious and error-prone revising figure, in this way to improve the intellectualized degree.



Bending stress database: different material type and thickness make different springback when bending, it needs control system adjusting bending pressure easily and quickly sccording to different materials. TPS is based on further studying of different materials, realized only adjusting one pressure parameter for a new material, that is,  Through the system's built-in algorithm,  intelligent computing all arc pressure parameters. User can select the corresponding material from database when they want to change another material. In this way to switch material at any time without a cumbersome re-adjustable processing.


Laser loss compensation:  In the actual laser cutting due to the problem of laser spot radius, the panel with the original file after cutting has a certain deviation. TPS introduced laser loss compensation method innovatively, only need a simple measure, our software calculates laser loss and to compensate automatically. Users thorough farewell problems of modification again and again and compensating for laser loss, it improves intelligent degree for operation process.



Plate bending tensile intelligent compensation:  Deformation of the material during bending processing will effect directly length of formed letter, reduce the letter matching precision of the shell and panel, the software provide intelligent compensation caused by the length deviation, to ensure bending accuracy.


Software build-in many word process: Different word process need to corresponding zoom for original file and processing waste of materials. Our software build-in some word process, to make different font letter using the same file, to avoid the complex calculation.

Operating software updates free all life.

Professional, high-efficient and considerate full service.

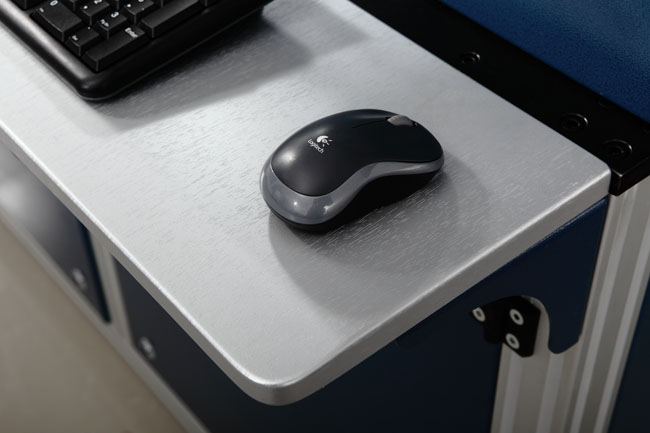

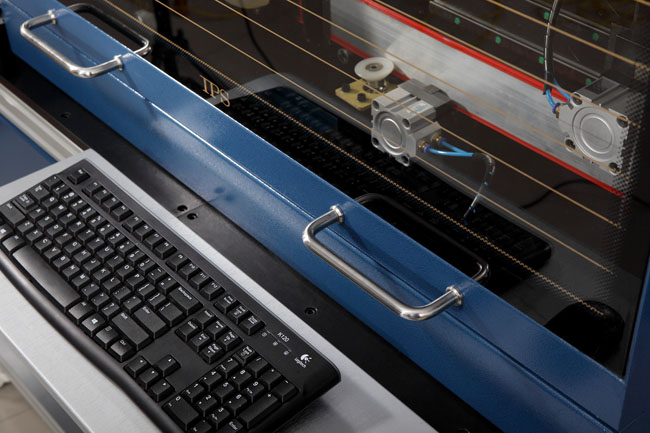

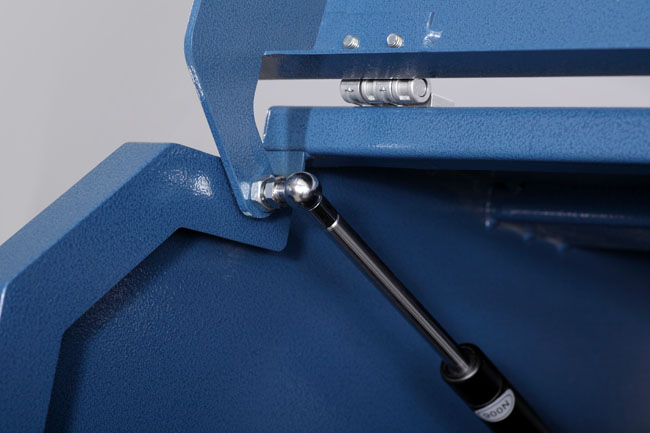

Exterior detail:









Software support:


DXF/PLT files input, support CAD, TYPE3, CRELDREW, ILLUSTRATOR, etc.



Technical Paremeter:




 Power supply:  AC200V
 Power  3.0KW
 Compressed air  0.4—0.8MPa
 Control axis quantity  8 Axises
 Min. Bending radius  Stainless steel(R7mm),Aluminium profile(R20mm)
 Min. distance between interior angle and exterior angle  Stainless steel(4mm),Aluminium profile(15mm)
 Bending distance from start  Stainless steel(4mm),Aluminium profile(10mm)
 Applied Material Stainless steel, galvanized sheet, aluminium coil, and aluminium profile
 Material thickness  Stainless steel(0.6-1.0mm),Aluminium(1-2mm
)
 Processing height   25-180mm
 Material feeding method  Altermate feeding
 Servo Motor  3PCS
 Step motor  5PCS
 N.W.  700Kg
