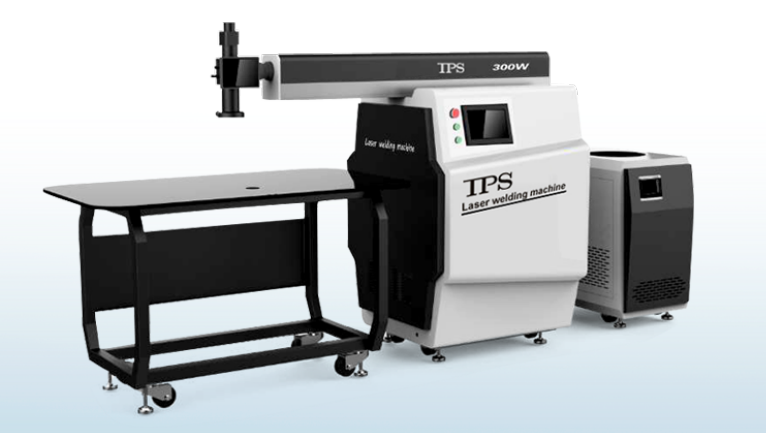

Model No.: TPS 300
Performance characteristics
1.High accuracy,can weld small and complex typeface and Logo,high
speed,no chromatic aberration and trace after welding,with beautiful
appearance,no need processing.
2. Aiming at advertising word industry,special king-size
Light path,arbitrary rotation for 360,high flexible range
3. No noise
4. Optional CCD monitor,welding result is much clearer.
5. Engineers can quickly learn to operate
6. High requirements
7. No pollution
8. Low loss, one hour down to 2KW
The difference from traditional welding machine
1. Without surface treatment
2. No consumable
3. No pollution
4. Easy operation,fast welding speed
5. Firmer welding
6. Not many requirement to the operator,only simple
training can operate well
Technical Specification
| Item | Parameter | Item | Parameter |
| Model | TPS300 | Laser Spot size adjusting range | 0.2-2mm |
| Max laser power | 300W | Whole power consumption | ≤7KW |
| Laser wave length | 1064nm | Power need | 220V ±10%/50Hz/40A |
| Monopulse Max power | 90J | Standard configuration working table | 800*1000mm load200Kg |
| Laser welding depth | 0.1-1.2mm | Sight positioning | CCD synchronism high definition camera |
| Pulse width | 0.1-20ms | Laser device vertical travel | ≥200mm |
| Laser welding frequency | 0.5-40Hz | Laser device horizontal direction | 200-800mm |
